Wireview

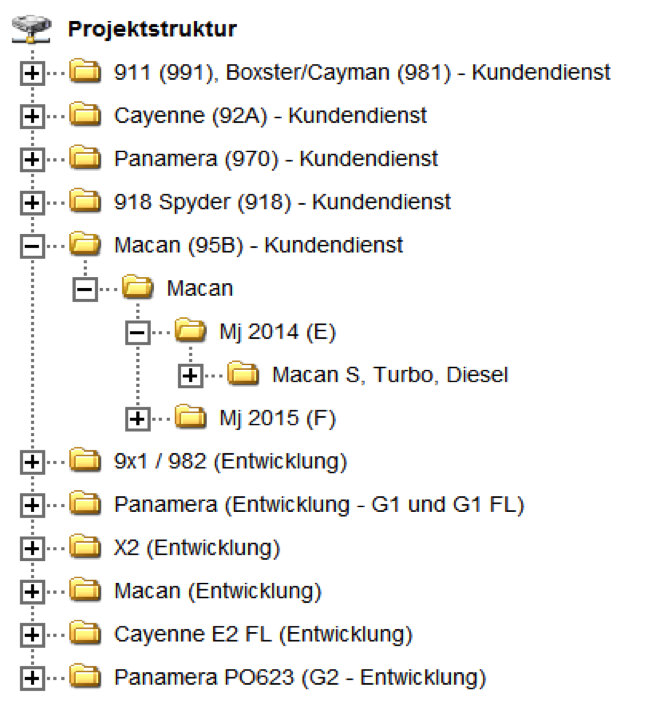

1. Open Wireview and select the needed model and model year - example Macan S - MY 2014.

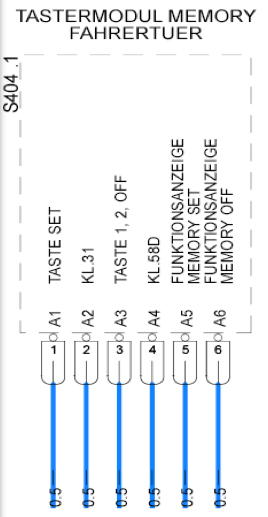

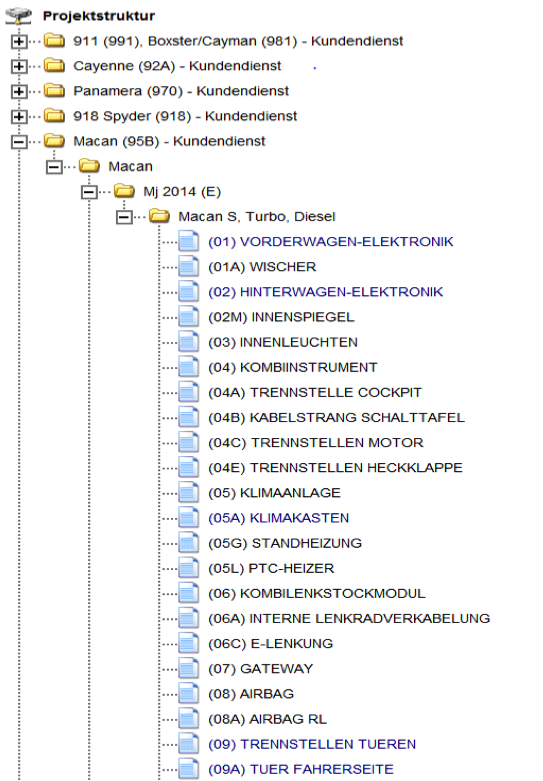

2. Select the required diagram - Example: (09A) door driver side. Identify the effected component/connector – Example: memory module/switch.



Identification of an item

1. Click on one of the pins which belong to the required connector.

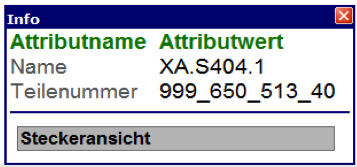

2. A pop up will open including the connector name and part number.

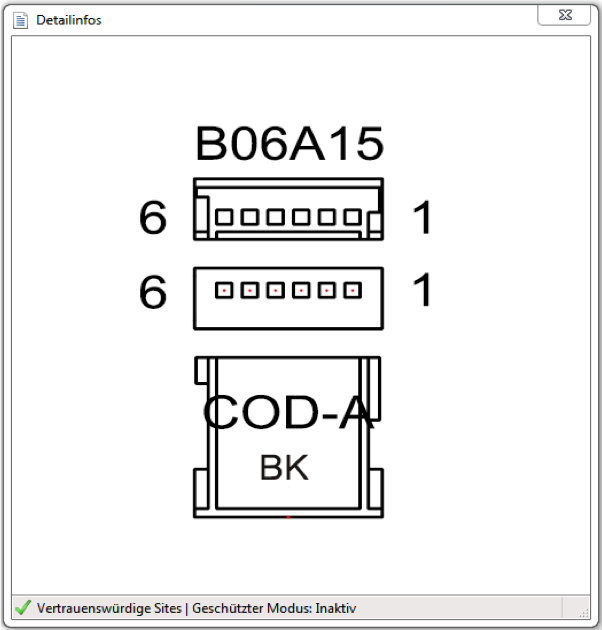

3. Press “connector view” to see the connector.



4. Note down the part number of the connector.

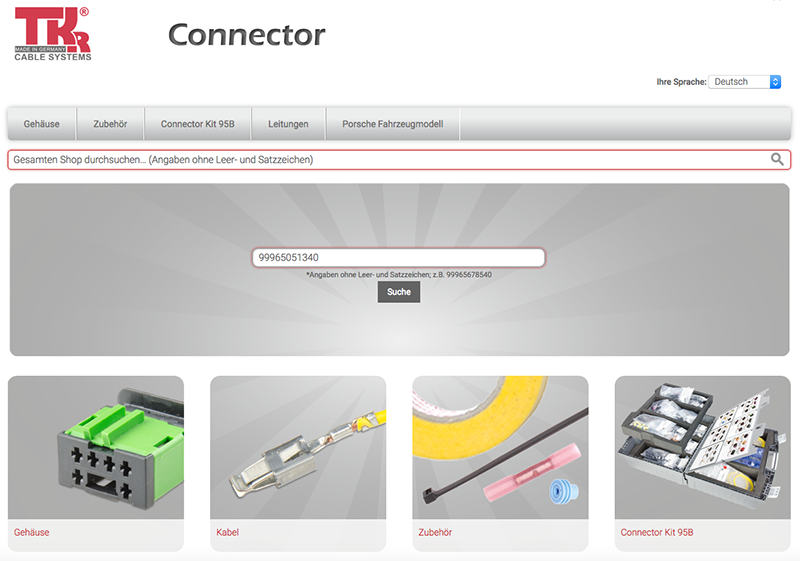

Enter the part number

Please enter part numbers without spaces or punctuation marks.

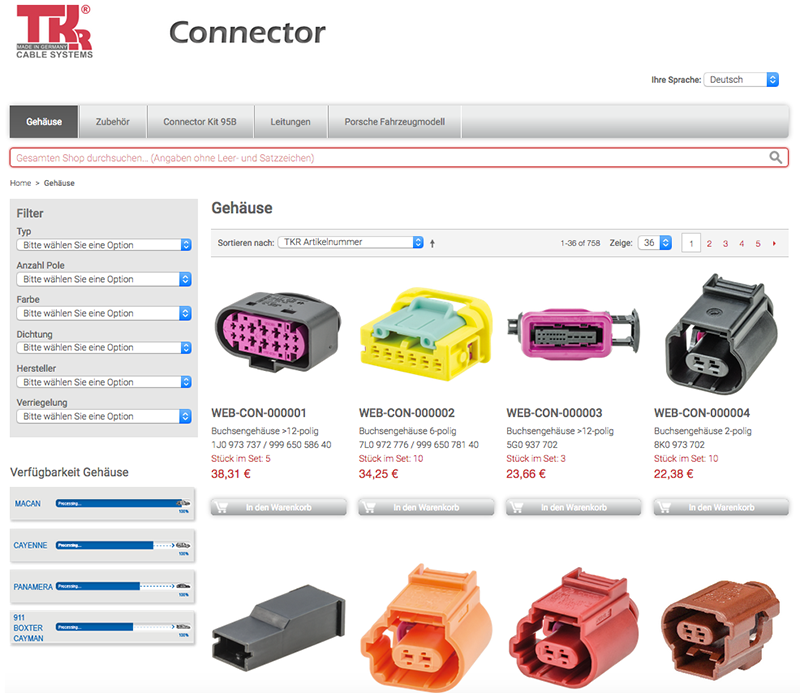

Additional search functions

1. By housing type
2. By number of pins
3. By the colour
4. By seals
5. By supplier
6. By different lockings

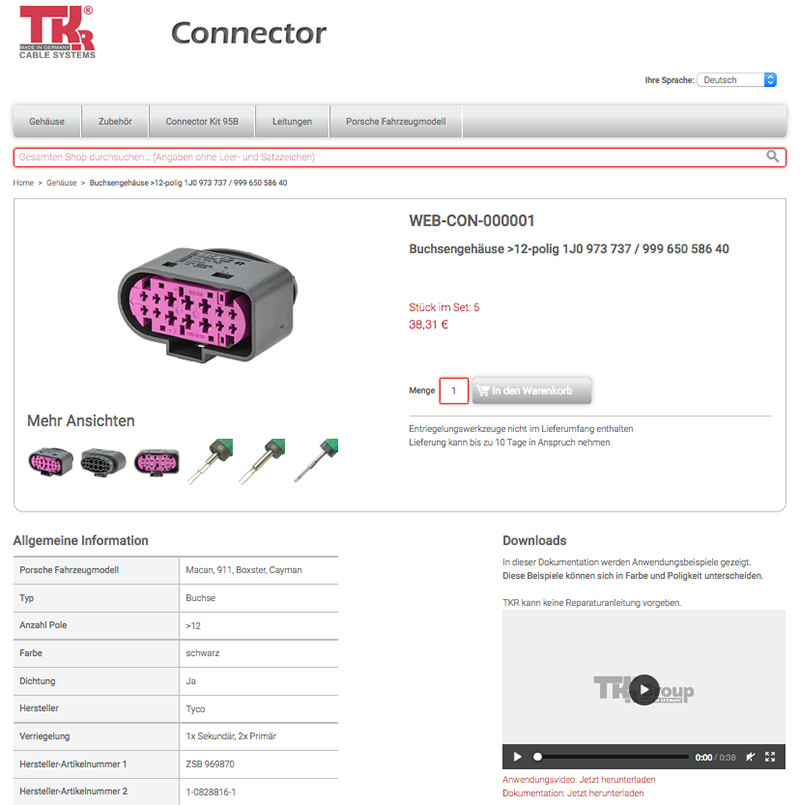

Content of an article

On the product card you find all available informations clearly arranged. In addition to the filterable specifications here also can be found use aids in form of videos and documentation PDFs, as well as links to appropriate references such as repair wires.
